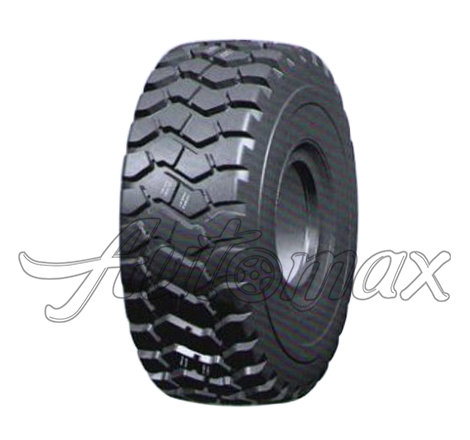

Dump Truck
B02N
Dump Truck/Loader/Earthmover Hilo● With wide and stabbile tread
● Exellent traction and adhesiion
● Designed to deliver exceptional operator comfort and for articulated trucks
Technical parameters
| Size | Star Rating | Load Index | Code | Tread Depth (mm) | Rim Width & Flange | Max Load (kg) | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (bar) | Max Speed (km/h) | Type |
| 23.5R25 | ★★ | 201/185 | L-3/E-3 | 34 | 19.50/2.5 | 14500/9250 | 1617 | 597 | 6.5/5.25 | 10/50 | TL |
| 26.5R25 | ★★ | 209/193 | L-3/E-3 | 37 | 22.00/3.0 | 18500/11500 | 1750 | 673 | 6.5/5.25 | 10/50 | TL |
| 29.5R25 | ★★ | 216/200 | L-3/E-3 | 43.5 | 25.00/3.5 | 22400/14000 | 1873 | 750 | 6.5/5.25 | 10/50 | TL |
| 29.5R29 | ★★ | 218/202 | L-3/E-3 | 43.5 | 25.00/3.5 | 23600/15000 | 1975 | 750 | 6.5/5.25 | 10/50 | TL |
